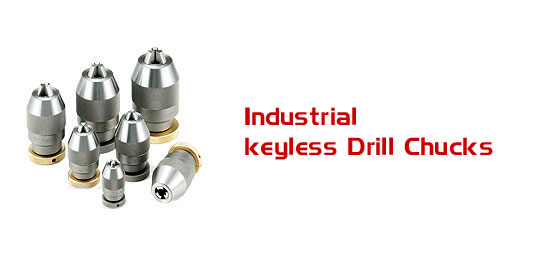

Industrial Keyless Drill Chucks

Keyless Drill Chucks mean the Drill Chucks tightened by hands without Chuck Key, and, are also called “Keyless Chucks” simply. It is most useful as Quick Change Chuck on the drilling machines, etc. The greatest feature of our Keyless Drill Chucks (Keyless Chucks) is that the cutting tools can be changed quickly. And if the diameter of the cutting tool is changed, the accuracy is stable. Since the Keyless Drill Chucks are manufactured in high precision processing and have the sure self-tightening mechanism, in the clock wise direction rotation, the drill bit is gripped hard automatically by the self-tightening mechanism, without loosening. Yukiwa Keyless Drill Chucks have higher accuracy than the specified accuracy and have been favorably reviewed by the users for 40 years from the beginning of manufacturing. There are many models and sizes of Keyless Drill Chucks, the customer can be selected the best one for the machine and/or drill to be used.

▲page top

Industrial Keyless Drill Chucks

• The super precision class (Gold) gives the world highest accuracy and quality. Run-out Accuracy (T.I.R) is less than 0.0012 inch.
• Highest Precision (Silver) also belongs to a high precision class chuck and is able to have a long durable accuracy as well.　The Run-out Accuracy (T.I.R) is less than 0.0020 inch.
• Parts are processed proper heat treatment and annealing and have a long life with precision.
• The Jacobs Taper is finished by grinding after being heat treated. Therefore, the taper hole has a good fitting to the spindle of the machine and to the arbor.
• Many steel balls are contained inside the chuck, which enables and easy and fast gripping or releasing of the tool.
• Its self - tightening structure will increase the cutting power and also the gripping torque.

Code No.	Model No.	Capacity				Dimensions (inches)			Jacobs Taper	Weight oz.
		inches		mm		D	L1	L2
		Min.	Max.	Min.	Max.
1301001	LC3-0JT	0.012	0.118	0.3	3.0	0.94	1.73	1.89	0JT	3.7
1302001	LC3-1JT *	0.012	0.118	0.3	3.0				1JT *	3.6
1303001	LC6.5-1JT	0.020	0.256	0.5	6.5	1.34	2.44	2.68	1JT	10.9
1304001	LC8-2SJT	0.020	0.315	0.5	8.0	1.50	2.70	2.99	2SJT	14.0
1305001	LC10-2SJT	0.020	0.394	0.5	10	1.69	3.15	3.58	2SJT	21.7
1305080	LC10-2JT	0.020	0.394	0.5	10				2JT	21.7
1305084	LC10-33JT	0.020	0.394	0.5	10				33JT	21.7
1306084	LC13-2JT	0.020	0.512	0.5	13	1.97	4.06	4.06	2JT	33.5
1306083	LC13-33JT	0.020	0.512	0.5	13				33JT	33.5
1306001	LC13-6JT	0.020	0.512	0.5	13				6JT	33.5
1307001	LC16-6JT	0.118	0.630	0.5	13	2.20	4.29	4.29	6JT	44.3

* Above-mentioned Code Numbers, they are Highest Precision class (Silver).
* The Taper angle is the same as JT.NO.1, but taper length is shorter than standard JT.NO.1.
  The detail must be inquired to us.

▲page top

Super Keyless Dream Chucks

• Super Keyless Dream Chucks, SLC13, are the keyless drill chucks having the lock-mechanism.
• They are most suitable chucking tools for the drilling and tapping operations and are available for M16 tapping at the maximum.
• All the parts are precision-made and hardened enough, and, moreover, the outside is totally enclosed type, all of which enduring an outstanding durability of the chuck.
• The run-out accuracy is less than 0.002 inch and stable. Allowable maximum gripping torque is strong enough of 70.8 inch-lbf.
• LOCK and FREE can be done by the one touch operation after re-tightening the chuck on the spindle using the attached Hook Spanner.

Code No.	Model No.	Capacity				Dimensions (inches)			Jacobs Taper	Spanner	Weight oz.
		inches		mm		D	L1	L2
		Min.	Max.	Min.	Max.
1406001	SLC13-6JT	0.020	0.512	0.5	13	2.01	3.56	4.25	6JT	FS13LC	36.4
1406080	SLC13-33JT	0.020	0.512	0.5	13				33JT		36.7

* One piece of hook spanner(FS13LC)is attached.
